REI Basecamp | Order Yours Today!
The REI Co-op Special Edition is adventure-ready, inside and out. It’s focused on sustainable features and materials that inspire explorers to discover more ways to camp beyond the traditional definition. Equipped with rugged components, exclusive upgrades, and a vast collection of REI Co-op kit items, this Basecamp provides all of the functional and beautiful design details that empower adventurers to get out and roam. Airstream lets you adventure in style and REI Co-op gears you up for active days and starry nights.
REI Basecamp Specifications
REI Basecamp 16'
REI Basecamp 20'
Enhanced Solar and Battery Power
New and exclusive to the REI Co-op Special Edition Basecamp is the option to upgrade to 360 watts of solar power and a 200Ah lithium battery bank from the factory. This high-performance upgrade includes 4 flat solar panels securely attached to the roof and 2 – 100Ah Battle Born batteries.
Water Filtration
With the pre-filter and advanced UV-LED Smart Drinking Faucet, you can effectively reduce bacteria and microorganisms to properly disinfect the potable water from your 21 gallon onboard tank. Bring your own container or use the included REI cups instead of relying on single-use plastics.
Check out our Airstream Basecamp Maintenance Guide
REI Basecamp Walk Through Tour
Image Gallery
REI Includes The Basecamp-X Package

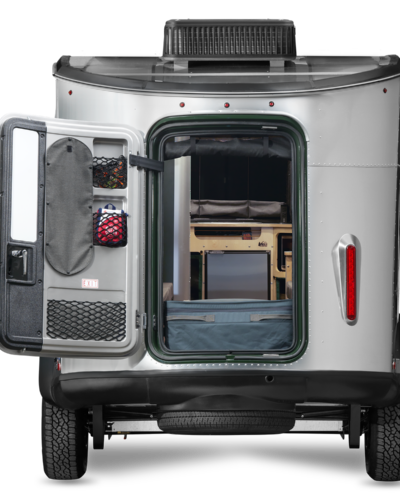

Basecamp X offers innovative features and accessories that increase departure angle and durability for more all-terrain use. The unit also offers a convertible rear space that was thoughtfully designed to easily adapt for eating, sleeping, lounging or storing gear. Loading and unloading is made easy with large rear cargo hatches and flexible storage space with tie downs.
In addition to standard Basecamp features, the new Basecamp X-package includes:
- 3” lift kit for added ground clearance
- Goodyear® Wrangler all-terrain tires
- Stainless Steel Wrap Protectors/Rock Guards
- Solar Window Stone Guards
- Black shadow wheel design
Model Specifications
| Specs |
Basecamp 16
|
Basecamp 20X
|
|---|---|---|
| Exterior Length | 16 ft. 2 in. | 20 ft. 2 in. |
| Exterior Width | 7 ft. | 7 ft. 9.5 in. |
| Interior Width | 6 ft. 4.5 in. | 7 ft. 2.5 in. |
| Exterior Height with A/C | 9 ft. 0 in. | 9 ft. 5 in. |
| Maximum Trailer Capacity (GVWR) (lbs.) | 3,500 | 4300 |
| Net Carrying Capacity (lbs.) | 800 | 800 |
| Fresh Water Tank (gal.) | 21 | 23 |
| Gray Water Tank (gal.) | – | 28 |
| Waste Water Tank (gal.) | – | 21 |
| Convertible Dinette to Additional Sleeping | – | |
| Sleeping Capacity | Up to 2 | up to 4 |
| Ducted Furnace (BTU) | 12,000 | 19000 |
| Interior Height with A/C (Entry Area) | 6 ft. 3.5 in. | 6 ft. 7 in. |
| Gray and Waste Water Combo Tank (gal.) | 24 (Combo) | – |
| Microwave | OPT | OPT (0.7 cu. ft.) |
| Bed Configuration | Seating (24 in. x 76 in.) Half Bed (38 in. x 76 in.) Complete Bed (76 in. x 76 in.) | Seating (26 in. x 78 in.) Half Bed (41 in. x 78 in.) Complete Bed (82 in. x 78 in.) |
| Exterior Height without A/C | 8 ft. 10.75 in. | 9 ft. 1 in. |
| 30 AMP Service Single A/C with Heat Strip (BTU) | 9,200 | 13500 |
| Hitch Weight (with LP & Batteries) | 450 | 535 |
| Unit Base Weight (with LP & Batteries) | 2,700 | 3500 |
| Interior Windows & Skylights | 8 | 8 |
| Refrigerator w/ Freezer (12v Electric) | 3.1 cu. ft. | 4.3 cu. ft. |
| Solar Charging System with Interior Monitor | OPT (200W) | OPT (300W) |
| Lithium Batteries (only available with 360W solar option) | OPT (200Ah 2.4kWh) | OPT (200Ah 2.4kWh) |
| Stainless Steel LP Gas Stove with Hinged Glass Lid (Burners) | 2 | 2 |
| X-Package | STD | |
| Solar Charging System with Lithium Batteries and Interior Monitor | OPT (360W) | OPT (360W) |
THE LISTED ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.
Specifications are subject to change without notification.
Exterior
| 16 | 20 | |||
|---|---|---|---|---|
| 12v Tank Heaters (In Addition To Heated Underbelly) | STD | STD | ||
| 180w Solar Package w/ Upgraded AGM Batteries (x2) | OPT | OPT | ||
| 2 Heavy Duty Stabilizer Jacks | STD | – | ||
| 3M® Film Front Stone Guard Protection (replaced with ‘X Package’) | STD | STD | ||
| 4 Manual Heavy Duty Stabilizer Jacks | – | STD | ||
| Aluminum Entry Door Handle | STD | STD | ||
| Black Tank Flush System | – | STD | ||
| Cast Aluminum LED Tail Lights | STD | STD | ||
| City Water Inlet w/ Water Pressure Regulator | STD | STD | ||
| Custom Aluminum Handcrafted Entry Door with Window | STD | STD | ||
| Custom Molded Plastic LP Cover w/ Storage Tray | STD | STD | ||
| Dedicated Sewer Hose Storage | STD | STD | ||
| Enclosed Aluminum Insulated Heated Underbelly | STD | STD | ||
| Exterior LP Gas Low Pressure Grill Connection | STD | STD | ||
| Exterior Shower w/ Hot & Cold Water | STD | STD | ||
| Fluorocarbon Treated UV Protected Aluminum Exterior | STD | STD | ||
| Goodyear 235/75R15 Wrangler Tires, Balanced | – | – | ||
| Goodyear 235/85R16 Off-Road DuraTrac Tires, Balanced | – | – | ||
| Goodyear® ST225/75R15 Tires, Balanced | STD | – | ||
| Goodyear® ST235/80R16 Tires, Balanced | – | STD | ||
| Goodyear® ST255/55R18 Tires, Balanced (replaced with ‘X Package’) | STD | – | ||
| Hand Crafted Welded Extruded Aluminum Window Frames | STD | STD | ||
| Hand Painted Chassis | STD | STD | ||
| LED Entrance Light | STD | STD | ||
| LED Tank Service Light | STD | STD | ||
| License Plate Bracket with LED Light | STD | STD | ||
| Lockable Fresh Water Tank Inlet | STD | STD | ||
| LP (2 – 20 lb. Steel Tanks) w/ auto 2-stage regulator | STD | STD | ||
| Powered Hitch Jack | STD | STD | ||
| Nev-R-Adjust® Brakes | STD | STD | ||
| Semi-Monocoque Aluminum Superstructure | STD | STD | ||
| Solar Front Window Protection | – | – | ||
| Solar Pre-wire (3 Rooftop & 1 Front Access Points) | STD | STD | ||
| Spare Tire – Full Size | STD | STD | ||
| Stainless Steel Front Stone Guard Protection | – | – | ||
| Steel Double Step | – | – | ||
| Steel Entry Step | STD | STD | ||
| Stylized Aluminum Wheels | STD | STD | ||
| Tempered Tinted Windows w/ Rear Venting Windows | STD | STD | ||
| Thermal Barrier Protection Between Interior and Exterior | STD | STD | ||
| Torsion Axle Suspension | STD | STD | ||
| Unique Front Door Key w/ Heavy Duty Deadbolt | STD | STD |
Interior
| Interior | ||
|---|---|---|
| 12v Auxiliary Power Outlet | STD | STD |
| Airstream Connected Pre-wire | STD | STD |
| Aluminum Aircraft L-Track Storage System (Floor, Walls) | STD | STD |
| Coat & Key Hooks | STD | STD |
| Complete Aluminum Interior Walls and Ceiling | STD | STD |
| Insulation | STD | STD |
| LED Interior Lighting | STD | STD |
| Multi-Speed Roof Exhaust Fan | STD | STD |
| Multi-Stage Auto Detect Converter | STD | STD |
| Overhead Storage | STD | STD |
| Panoramic Front Windows with Blackout Shades | STD | STD |
| Probeless Tank Monitoring System | STD | STD |
| Rear Floor Storage Compartment w/ Drain Plug | – | STD |
| Seamless Vinyl Flooring | STD | STD |
| Sliding Screen Front Door and Zippered Rear Screen | STD | STD |
| Tankless On-Demand Recirculating LP Water Heater | STD | STD |
| Tie Down Hooks | STD | – |
| UV Coated Birch-Ply Cabinetry | STD | STD |
Galley, Dinette, & Lounge
| Galley, Dinette, Lounge | ||
|---|---|---|
| 2 Additional Short Aluminum Pedestals for Bed Conversion | STD | STD |
| 2 Burner Cooktop (LP Gas) | STD | STD |
| 2 Movable Laminate Table Tops with Aluminum Pedestals | STD | STD |
| Convertible Lounge and Sleeping Accommodations | STD | STD |
| Dedicated Table Storage | STD | STD |
| Flatware and Cutting Board Organizer | – | STD |
| Green Slate Galley Top | STD | STD |
| Knoll Stain Resistant Fabric Indoor/Outdoor Cushions | STD | STD |
| Microwave | OPT | OPT |
| Pop Up 110v USB and Standard Outlets | STD | STD |
| Stainless Steel Sink with Epicurean Cover | STD | STD |
| UV-LED Water Filtration System | STD | STD |
| Vigo Graphite Black Faucet | STD | STD |
Bedroom
| Bedroom | ||
|---|---|---|
| 12v USB-A and USB-C Ports | STD | STD |
| Blackout Curtain(s) | STD | STD |
| Cargo LED Light | STD | STD |
| Convertible Lounge, Storage & Sleep Accommodations | STD | STD |
| Lockable Storage with USB | STD | STD |
| Under Bed Storage | STD | STD |
| USB Ports | STD | – |
Bathroom
| Basecamp Shower Caddy | STD | STD |
| Composting Toilet | OPT | OPT |
| Removable Hand Held Shower Head w/ Shut Off | STD | STD |
| Retractable Clothes Line in Shower | STD | STD |
| Roof Vent/Fan | STD | STD |
| Toilet | STD | STD |
| Towel Bar/Hooks | STD | STD |
Additional Features
| 1 Year Airstream Club Explorer Membership | STD | STD |
| 3 Year 24/7 Coach-Net® Roadside Assistance | STD | STD |
| 3 Year Airstream Limited Warranty (Transferable) | STD | STD |
| A/C Condensation Drain at Ground Level | STD | STD |
| Airstream + REI Logo Entrance Mat | STD | STD |
| Built In Winterization Kit | STD | STD |
| Fire Extinguisher | STD | STD |
| Fully Enclosed Tent with Air Tube Technology (Parts Department) | STD | STD |
| LP, Smoke & Carbon Monoxide Detectors | STD | STD |
| REI Co-op + Airstream Basecamp Kit | STD | STD |
| TRA Certified Green: Emerald Status (Highest Rating) | STD | STD |
