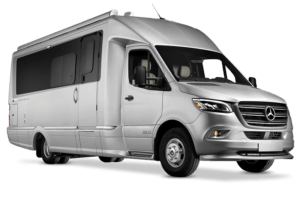

ATLAS
Introducing the all-new Atlas, our most luxurious Touring Coach to date, with 50+ best-in-class features. Inspired by the trailblazing Interstate, the Atlas B+ offers richly appointed high-end finishes, a wider body, and a horizon-expanding power slide-out Murphy Suite. A new standard has arrived for those who believe a well-traveled life begins with the best.
Performance
The Atlas partnership of Airstream and Mercedes-Benz means that you can expect the
exceptional power, responsiveness, efficiency, and control of a Mercedes-Benz, built to
the specifications of Airstream with its uncompromising legacy of durability and functional
design. The result? Premium chassis upgrades come standard with every Atlas.
Safety
Nothing is more important to Airstream or Mercedes-Benz than the safety of every
passenger in our vehicles. That’s why both companies are renowned for innovations in safety features from bumper to bumper.
Image Gallery
Specifications
Cockpit Features
| Heated Swivel Driver/Passenger Seats | STD |
| Rear & Side View Camera Monitor | STD |
| Privacy Shades | STD |
| Tilt & Telescopic Steering Wheel | STD |
| Multifunctional Steering Wheel | STD |
| Locking Glove Box | STD |
| Entry Door Lighting | STD |
| Overhead Map Lights | STD |
| In-Dash Maintenance Monitoring System | STD |
| Touch Screen NAV/SAT Radio/DVD System (8 in.) | STD |
| Custom Carpet Floor Mat | STD |
Main Cabin Features
| Signature Aluminum Ceiling & Trim | STD |
| High Gloss Laminate Cabinetry | STD |
| Flush-Mount Cabinet Hardware & Soft Close Doors | STD |
| Ultraleather® Seating | STD |
| Magic Suede® on Trim & Window Coverings | STD |
| Power Tilting Oceanair Window Shades | STD |
| Marine Woven Synthetic Flooring | STD |
| Adjustable LED Lighting | STD |
| Pedestal Table (2) | STD |
| LED 40 in. Widescreen HDTV and Soundbar on Power Lift | STD |
| Multiplex Control System w/7 in. Color Touchscreen | STD |
| Villa® Power Sofa w/Integrated Murphy Bed | STD |
| Froli® Ergonomic Bed Support System | STD |
| Power Opening Sunroof Skylight w/Screen & Shade | STD |
| Wardrobe Closet | STD |
| USB Charging Ports | STD |
| Angel White Overhead Locker Accent Laminate | OPT |
| Black Ultraleather® | STD |
Exterior Features
| Air Ride Suspension | STD |
| Power Stabilizer Jacks | STD |
| Chrome Package (body line trim, grill, license plate holder) | STD |
| Alcoa® DuraBright Aluminum Wheels | STD |
| BASF Metallic OE Paint w/Cut & Buff Finish | STD |
| Fog Lamps | STD |
| Front Lower Spoiler | STD |
| Hidden Hitch Cover Rear Bumper | STD |
| Bi-Xenon Headlights with Washer System | STD |
| Heated Windshield | STD |
| Power Heated Mirrors | STD |
| Mercedes-Benz® OE Sprinter Tail Lights | STD |
| Power Armless Awning with Auto-Retract | STD |
| Power Entry Step with Hidden Design | STD |
| LED Patio & Awning Lighting | STD |
| Remote Locking Storage Doors with Hidden Latches | STD |
| Exterior Shower with Hot & Cold Water | STD |
| LED Undercarriage Lights w/Dimmer | STD |
| Hidden Retracting Screen Door | STD |
| 110V Outlet, HDMI & Coaxial Output | STD |
| LP Accessory Hook-up (Grill) | STD |
| Storage Compartments w/LED Motion Lights | STD |
| Frameless Radius-Corner Tilt-Open Windows | STD |
Bathroom Features
| Fantastic® Fan w/Temperature & Rain Sensors | STD |
| Toilet | STD |
| Corner Shower w/Teak Wall Inlay | STD |
| Kohler® Faucet, Shower Head & Sink | STD |
| Integrated LED Shower Lighting | STD |
| Towel Rack | STD |
| Riveted Aluminum Porthole Door | STD |
| Mirrored Medicine Cabinet | STD |
| Storage Drawers | STD |
| Cedar-lined Wardrobe Closet | STD |
Galley FEatures
| Kohler® Faucet & Sink w/Flush Solid-Surface Cover | STD |
| Solid-Surface Countertop with Aluminum Backsplash | STD |
| Galley Extension Pull-Out Shelf | STD |
| Fantastic® Fan w/Temperature & Rain Sensors | STD |
| Drop-In Waste Basket w/Solid-Surface Cover | STD |
| Aluminum Refrigerator Fascia | STD |
Construction Features
| Curved Composite Storage Doors w/Continuous Hinge | STD |
| Azdel Composite Roof/Floor/Wall Material | STD |
| Floor – Vacuum-Bonded Aluminum-Framed | STD |
| Roof – Fiberglass Crowned Vacuum-Bonded Aluminum-Framed | STD |
| Walls – Radius Vacuum-Bonded Aluminum-Framed | STD |
| Interlocking Extrusion Joints w/Huck Rivets | STD |
| Trimless Smooth Fiberglass Body Seams | STD |
| Molded Fiberglass Front & Rear Caps | STD |
Safety Features
| Multiple Safety Impact Air Bags | STD |
| Four Seat-Belt Positions | STD |
| Collision Prevention Assist | STD |
| Lane Keeping Assist | STD |
| Rear Camera Assist w/Always-On Viewing & Adjustable Angle | STD |
| Side Camera Assist Integrated in Side Mirrors | STD |
| High Mounted Third Brake Light | STD |
| Advanced Navigation w/RV Specific Warnings & Instructions | STD |
| Rain Sensing Windshield Wipers | STD |
| Smoke, CO2 & LPG Detectors | STD |
| Fire Extinguisher | STD |
Chassis/Warranty
Mercedes-Benz® Sprinter 3500 Cut-away Chassis
Mercedes-Benz® 3.0L V6 Turbo Diesel Engine BlueTEC SCR Technology
50 State – EPA/CARB Standards — Horsepower/Torque (lbs.) 188/325, 5 Speed Automatic Transmission
Axle Ratio 3.92
Wheelbase (in.) 170
(Estimated Highway) 16-18 -Benz® Adaptive ESP® (Electronic Stability Program) Chassis Safety System
GVWR (lbs.) 11,030
GCWR (lbs.) 15,250
UBW (lbs.) 10,250
NCC (lbs.) 985
Mercedes-Benz® Hitch
7 Pin Trailer Plug, Brake Control Pre-wired Tow Package
Tow Capacity (up to) (lbs.) 5,000
Mercedes-Benz® Trailer Stability Assist System
Overall Length 24′ 9″
Overall Height (including A/C) 10′ 6″
Overall Width 8′ 3″
Interior Height 6′ 6″
Interior Width 7′ 4.5″
Fresh Water Tank (gal.) 23
Grey Water Tank (gal.) 31
Black Water Tank (gal.) 23
LPG (gal.) (80% fill) 9.76
Fuel Tank Weight (lbs.) (80% fill) 41.38, Diesel Fuel (gal.) 26.4, Quietstream™ Ducted A/C w/Heat Pump (BTU) 15,000, Furnace (BTU) 16,000
Water Heater (On-Demand Continuous Flow) (BTU) 60,000 Heated Fresh
Grey, and Black Tanks (12-volt)
Refrigerator & Freezer (12-volt) 9.1 cu. ft.
Convection Microwave 1.1 cu. ft.
2 Burner Cooktop (with Integrated Cover)
LP Gas Detector, Smoke and CO2 Alarm
Fire Extinguisher
First Aid Kit
Macerator Pump Plumbing System w/Electric Retract
Omni Directional In-motion VHF/UHF TV Antenna
Cable TV Outlets/Hook-ups
Pre-wired for Satellite Dish
Touch Screen/Touch Pad Electronic Controls with Energy Management System
Multi-stage Charger (amp) 50
Pure Sine Inverter (Watt) 1,000
Diesel Generator with Remote Start (kiloWatt) 3.2
Deep Cycle Maintenance Free Group 24 AGMs (12-volt) 2
Shore Power (amp/volt) 30/110
Solar System (Watt) 300
24/7 365 Roadside Assistance
3 Years/36,000 Miles Airstream Warranty
Years/36,000 Miles Mercedes-Benz® Warranty
5 Years/100,000 Miles Mercedes-Benz® Engine Warranty
