WEIGHTS & MEASUREMENTS

Overall Length (approximately): 25′ 7″

Overall Height with Roof Air (max.): 11′ 4″

Interior Height: 6′ 8″

Overall Width: 7′ 6″

Interior Width: 7′ 3″

Fresh Water (gal.): 38

Black Water (gal.): 28

Grey Water (gal.): 36

LPG Tank: 20 gal. (16 usable)

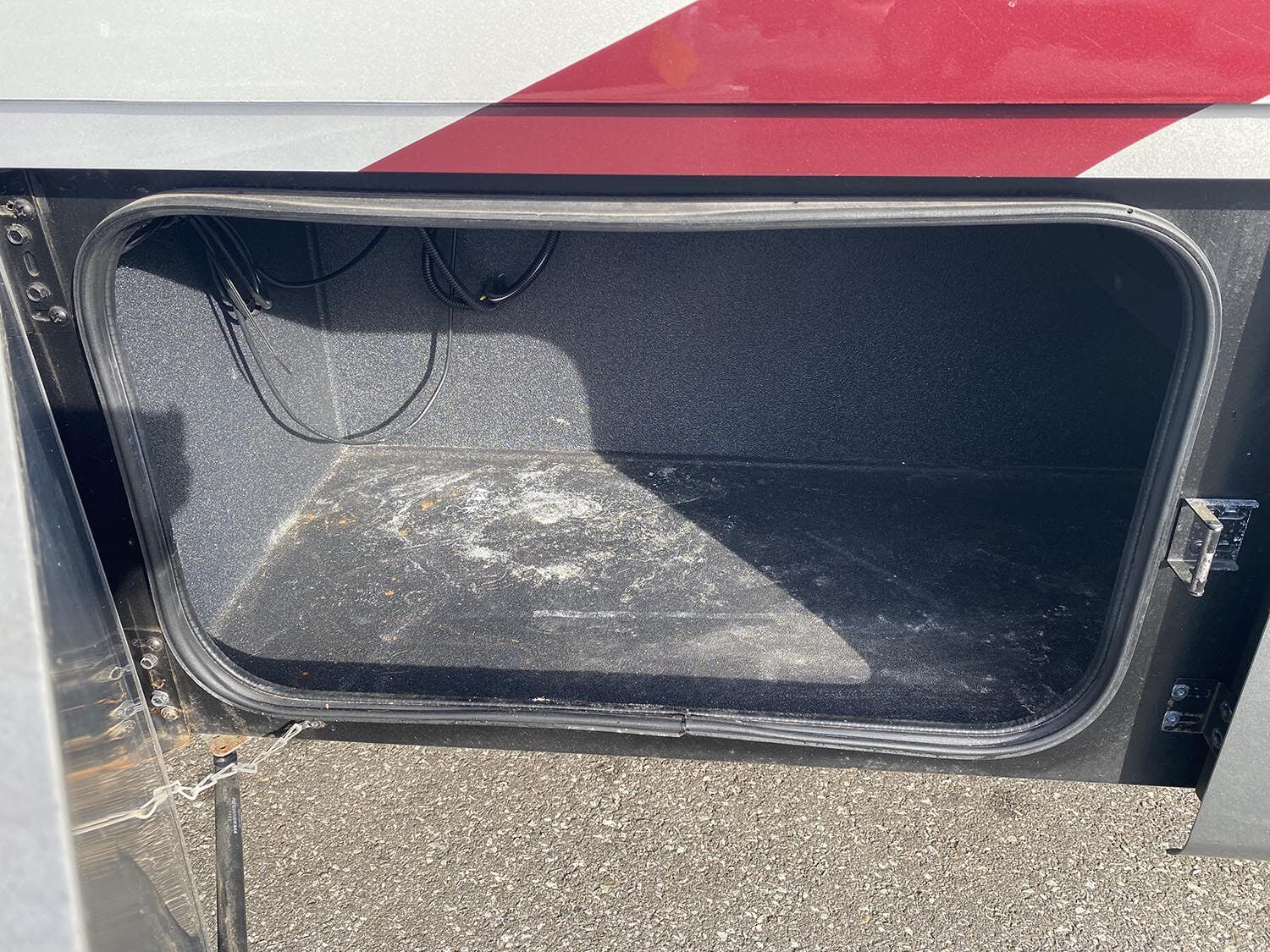

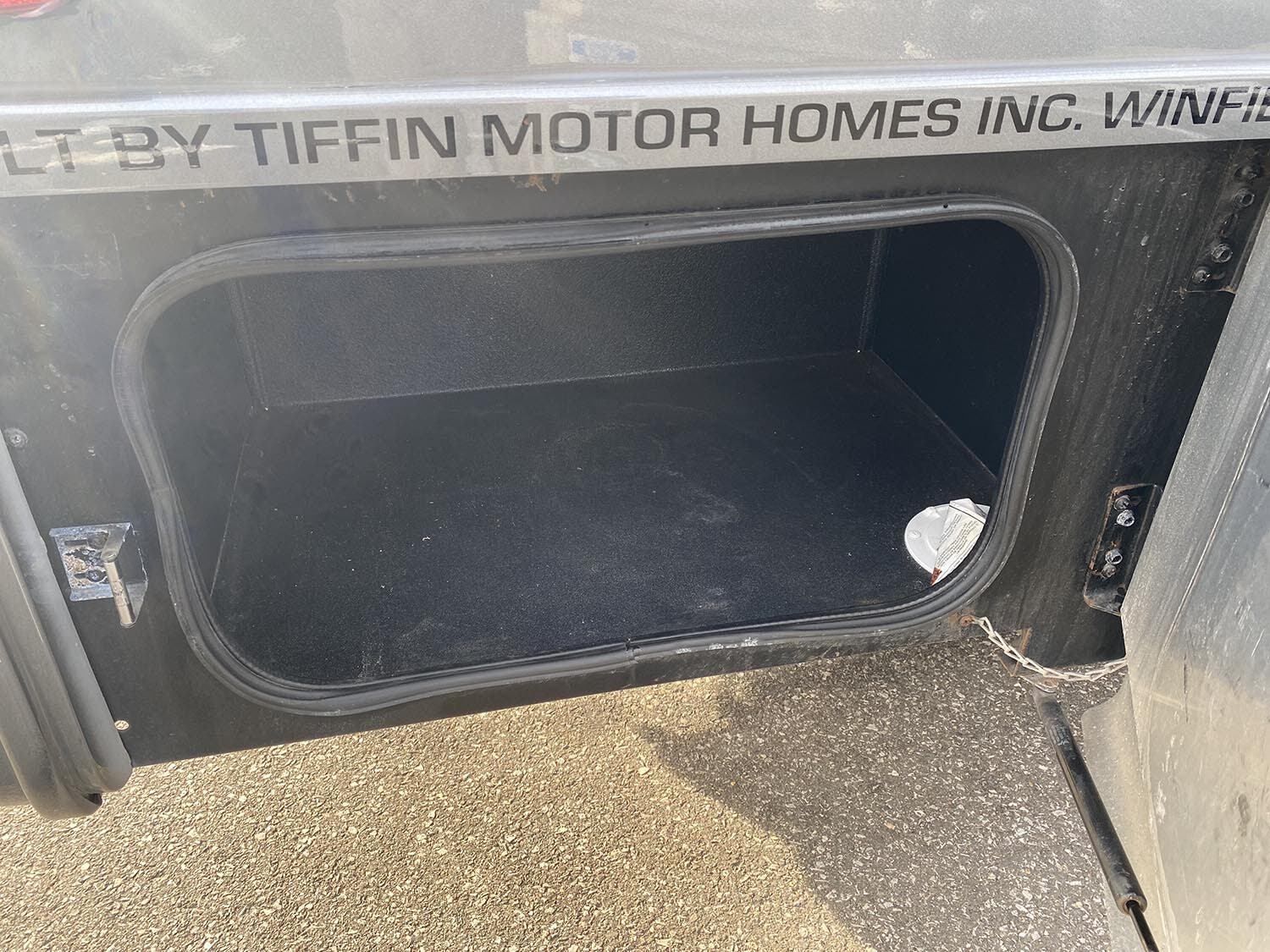

Basement Storage (cubic feet — approximately): 37

Trailer Hitch Capacity: 5,000 lb

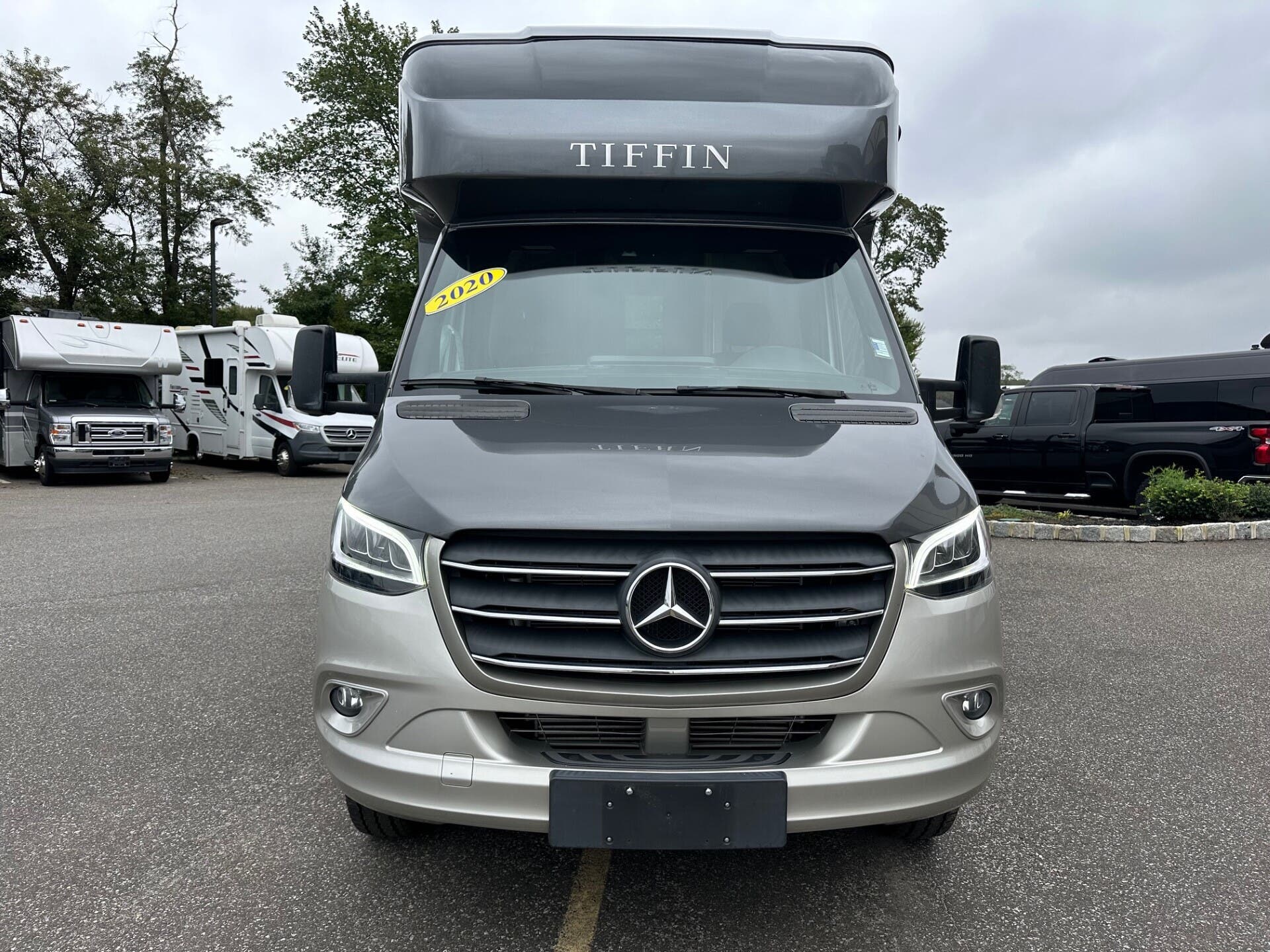

MERCEDES CHASSIS

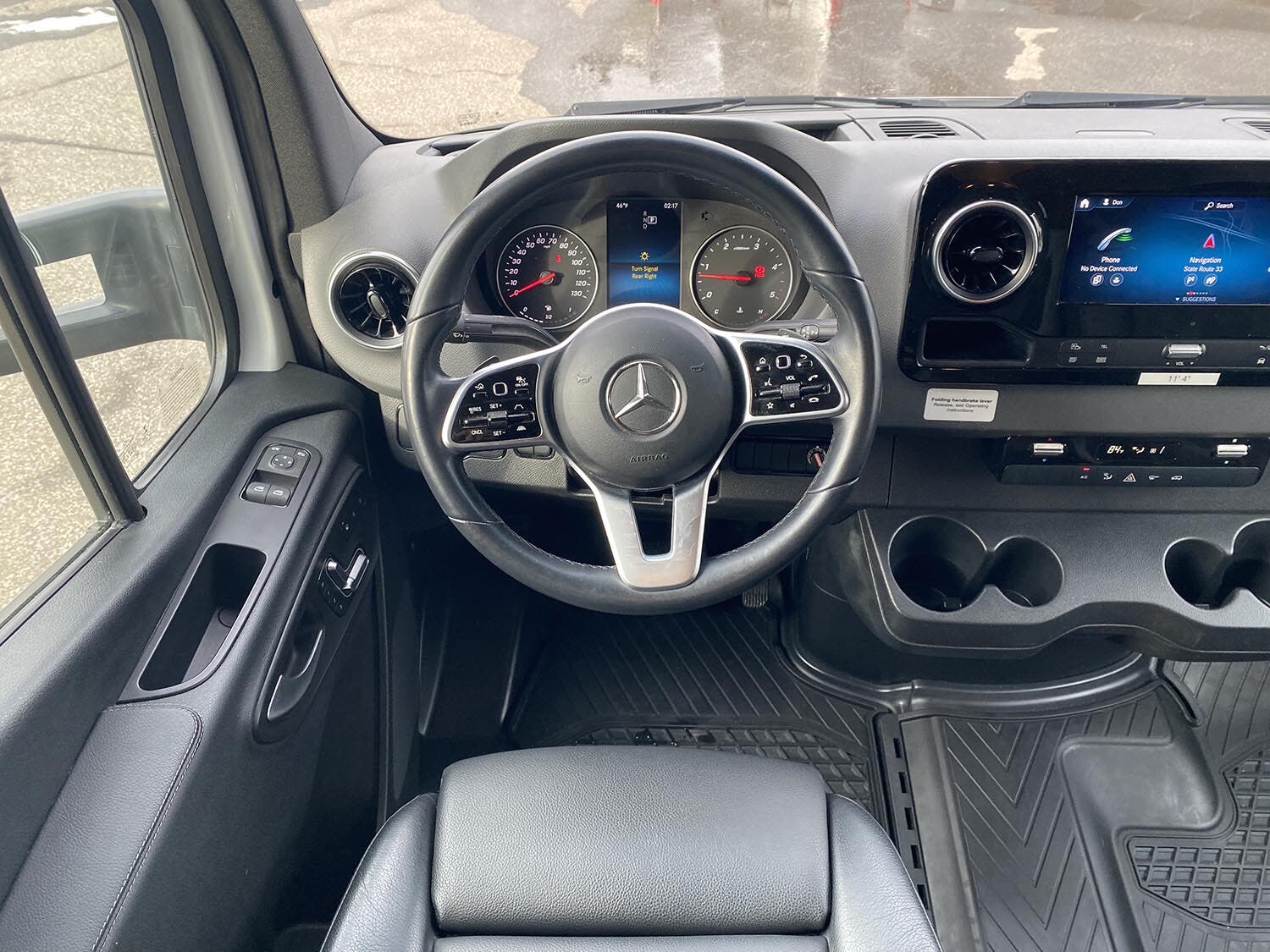

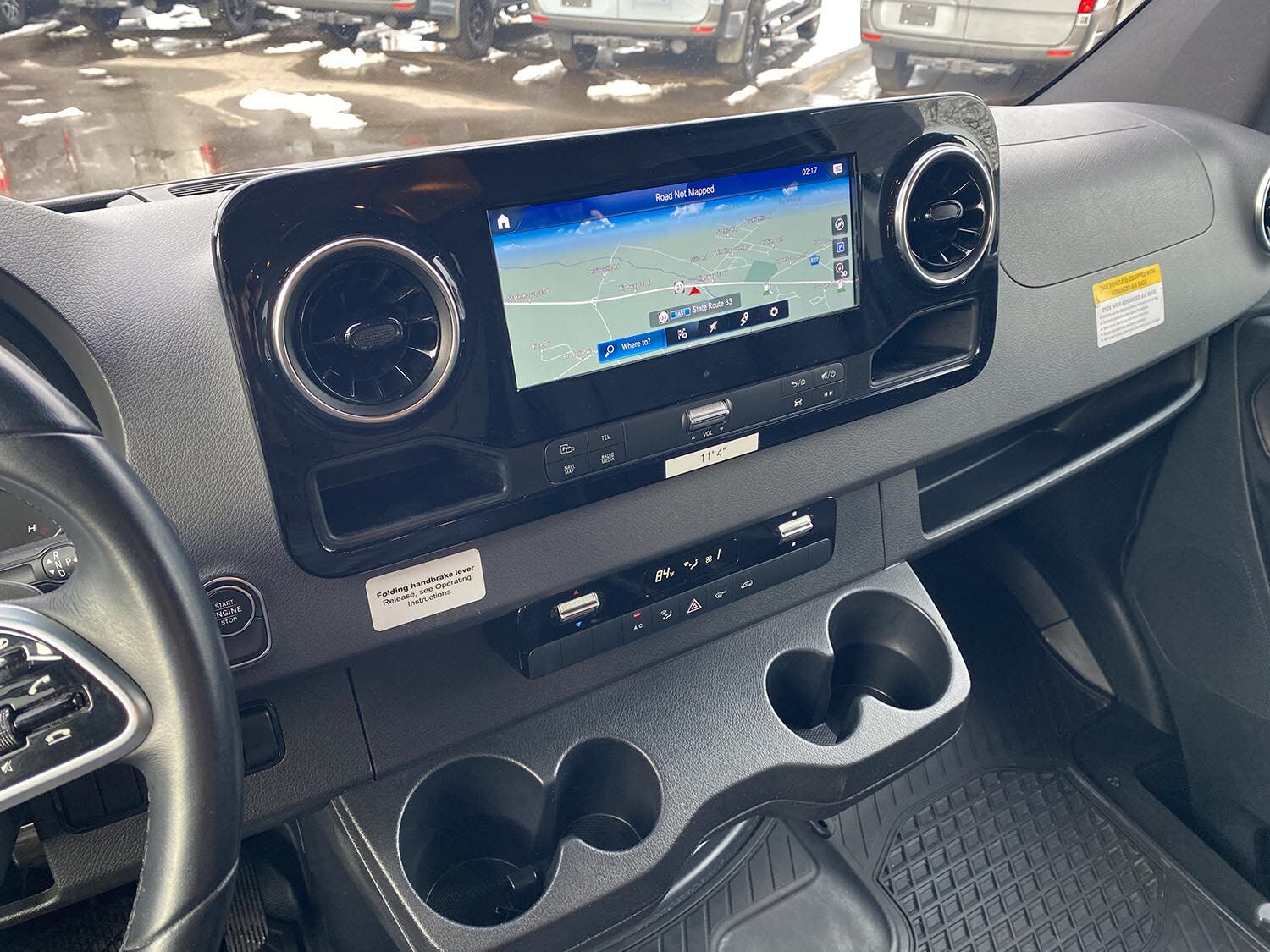

3.0 6-cylinder Turbo Diesel Engine with 7-speed Automatic Tip Shift Speed Transmission 188 HP/325 lb Torque • GVWR — 11,030 lb • GCWR — 15,250 lb • GAWR Front — 4,410 lb • GAWR Rear — 7,720 lb • Attention Assist • Multifunction Steering with Trip Computer • Light and Rain Sensor • Heated/Electric Adjustable Mirrors • Windshield with Filter Brand • Overhead Control Panel with Reading Lamps • Improved Lane Keeping Assist • Collision Prevention Assist • High Beam Assist • Stainless Steel Wheel Liners • 5,000 lb Rated Hitch with 500 lb Vertical Tongue Weight and 7-pin Connector • SumoSprings® Ride Assist System • 170.3″ Wheel Base • 24.5 Gallon Fuel Tank • DEF Tank 1 (Gallons): 4.8 • Load Adaptive Electronic Stability (ESP) • Optional Aluminum Wheels

EXTERIOR STANDARD

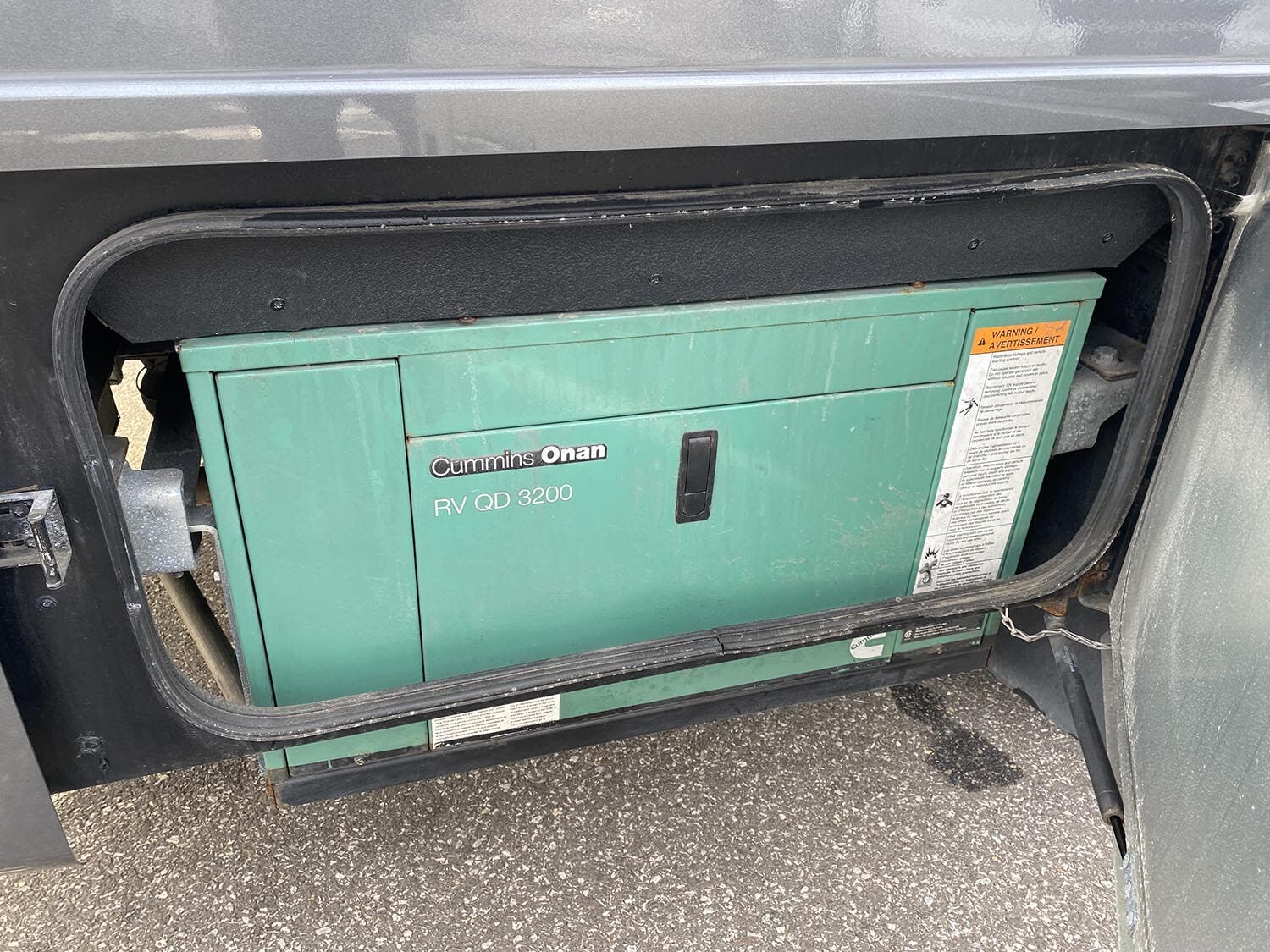

Truma® Comfort Plus Instant Hot Water Heater • One-piece Seamless Slide-out • HD TV Antenna with Amplifier • Two 12 V House Batteries (Group 27/180 Amp Hours) • 30 Amp 110 V House Service • Power Cord — 30′ Permanently Attached • 3.2 kw Diesel Generator • 1000 Watt Inverter Pure Sine • 110 V and 12 V House Load Center with Power Converter • HD Over-the-Air TV Antenna • Prep for Satellite • Pre-wired for Solar Panels • 13.5 K Mid Air Conditioner • Park Cable and Ground Satellite Hook-up • Girard® 16′ Wind Sensor Awning with Speakers • Automatic Lights in Exterior Compartment Doors • Wall-mount Thermostat with Built-in Temperature Sensor • 30 K BTU Propane Ducted Furnace • 12 V Engineered Wiring Harnesses • Entrance Door Assist Handle • Wheel Liners

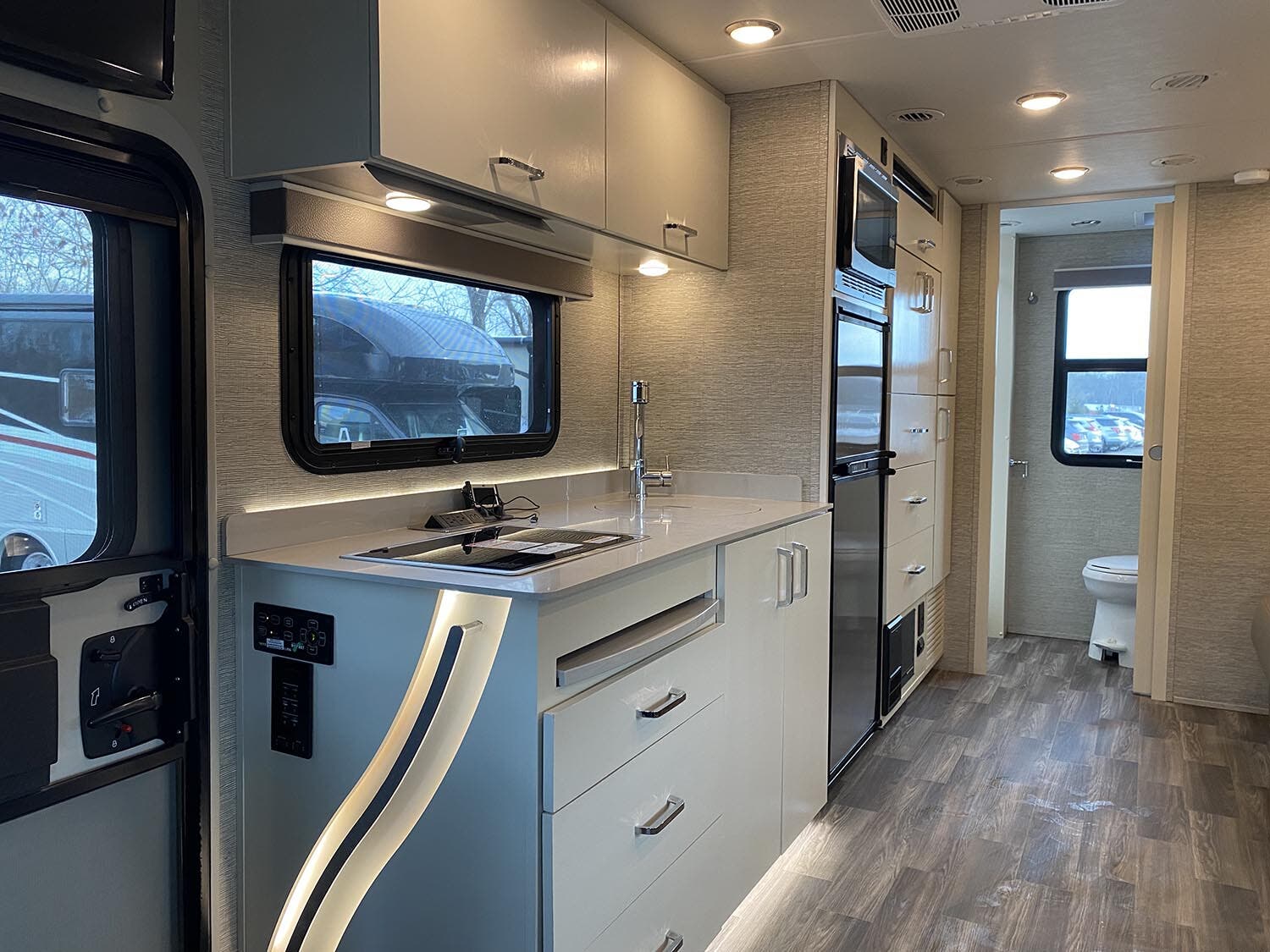

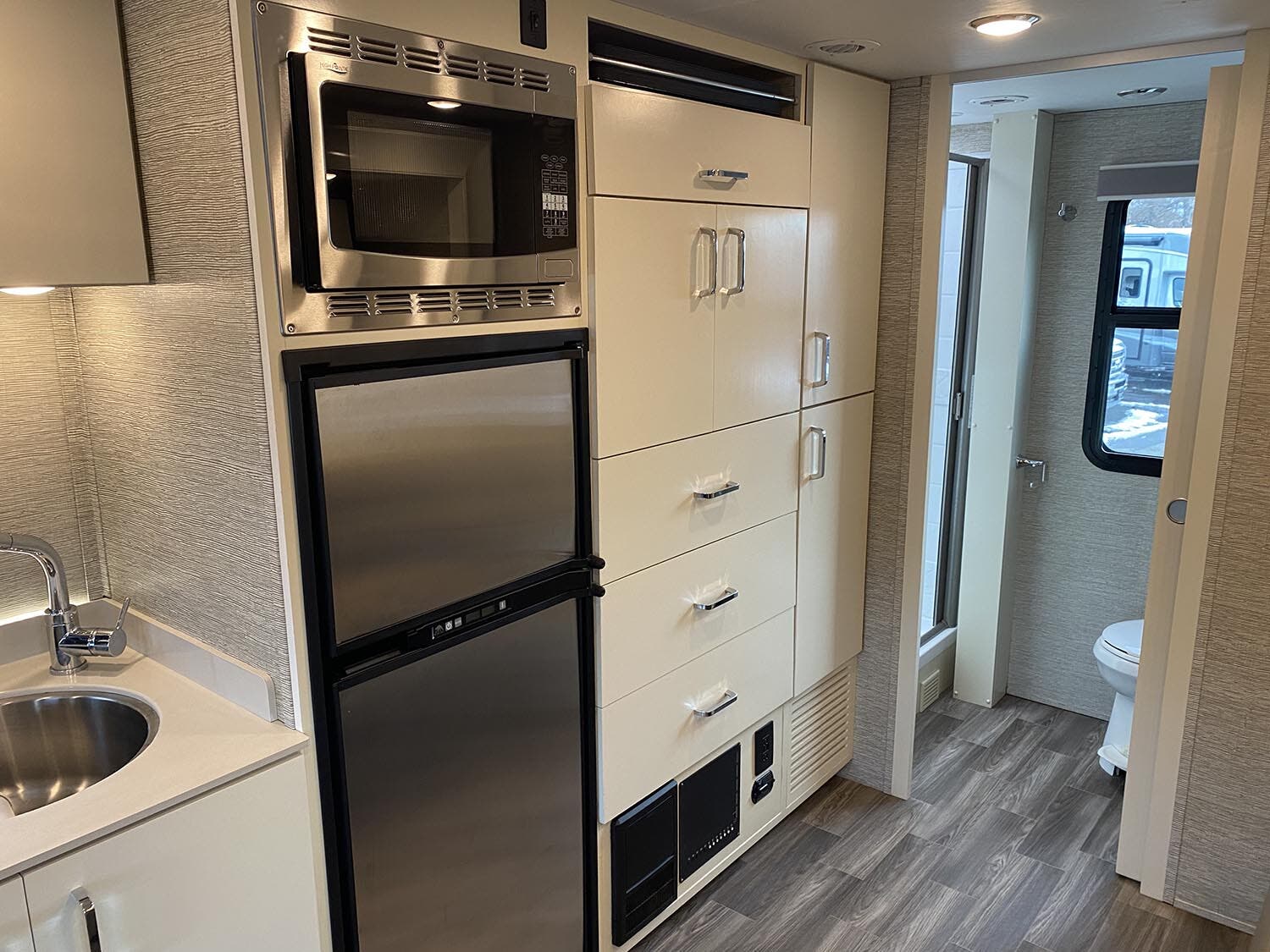

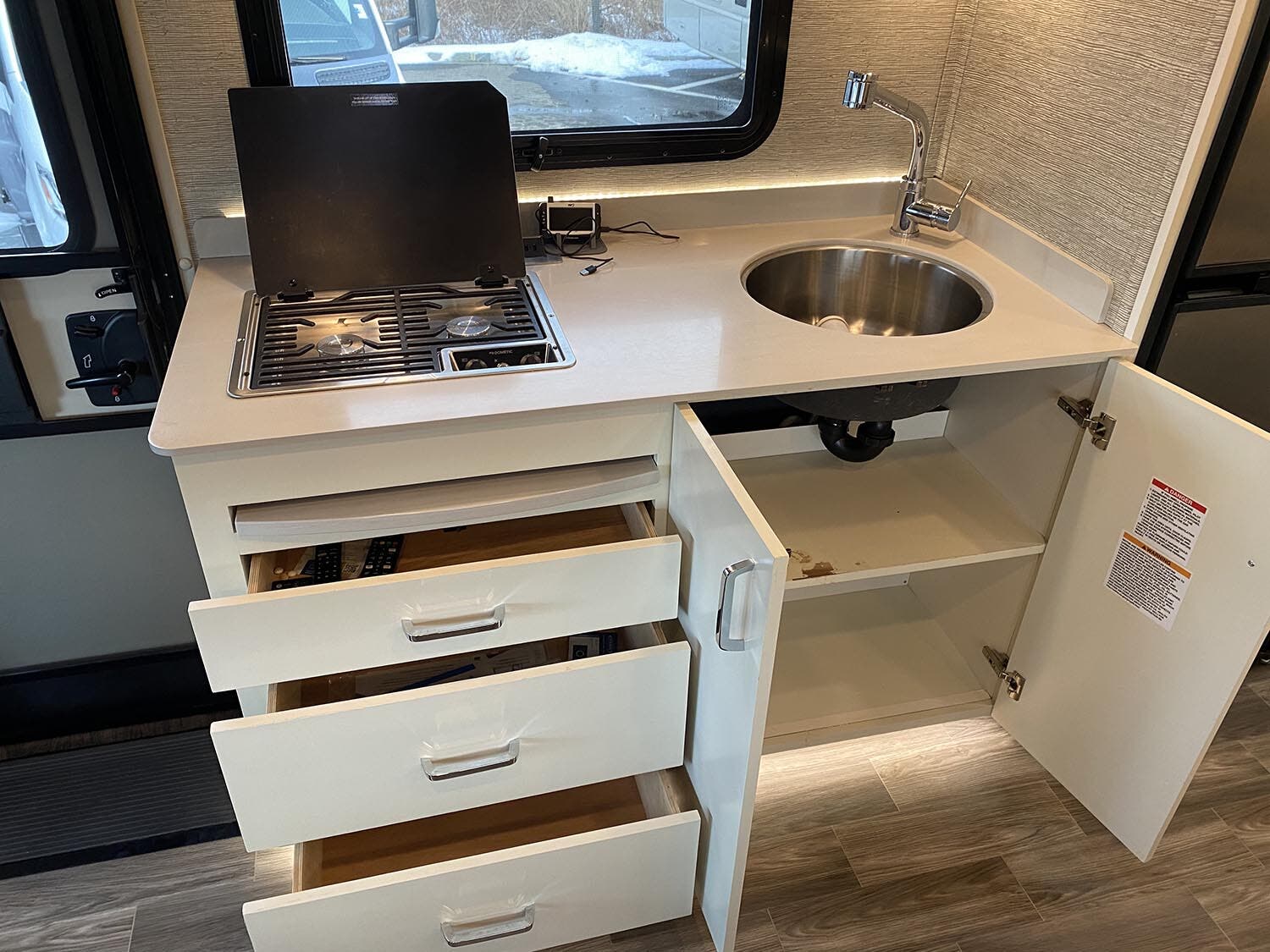

KITCHEN

 LP Cooktop with Built-in Cover • Convection Microwave • Single Bowl Sink • Designer Faucet • Over-the-Counter Lighting • Under-the-Counter Lighting • Fire Extinguisher • Spice Rack • 110 V Outlet

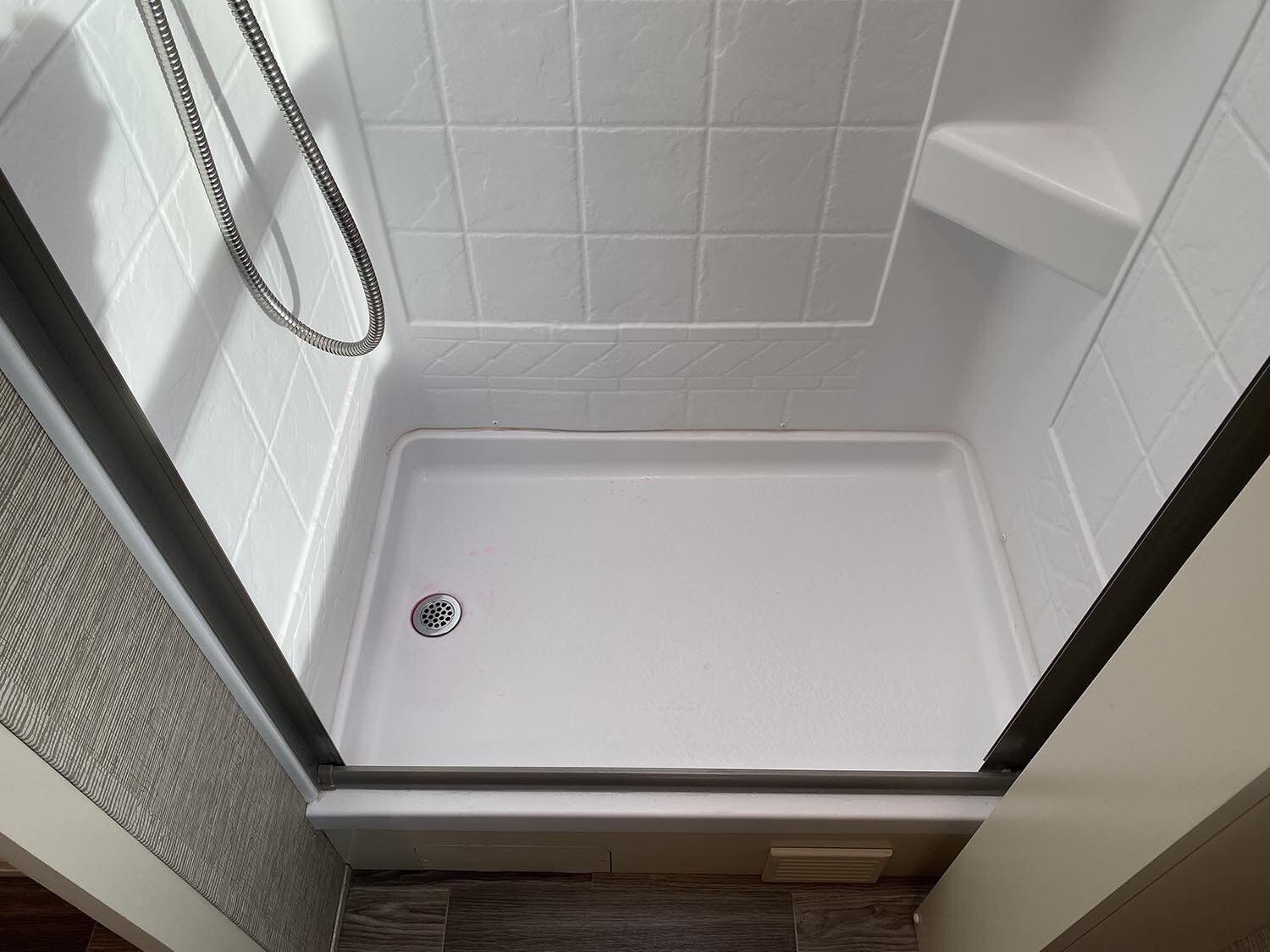

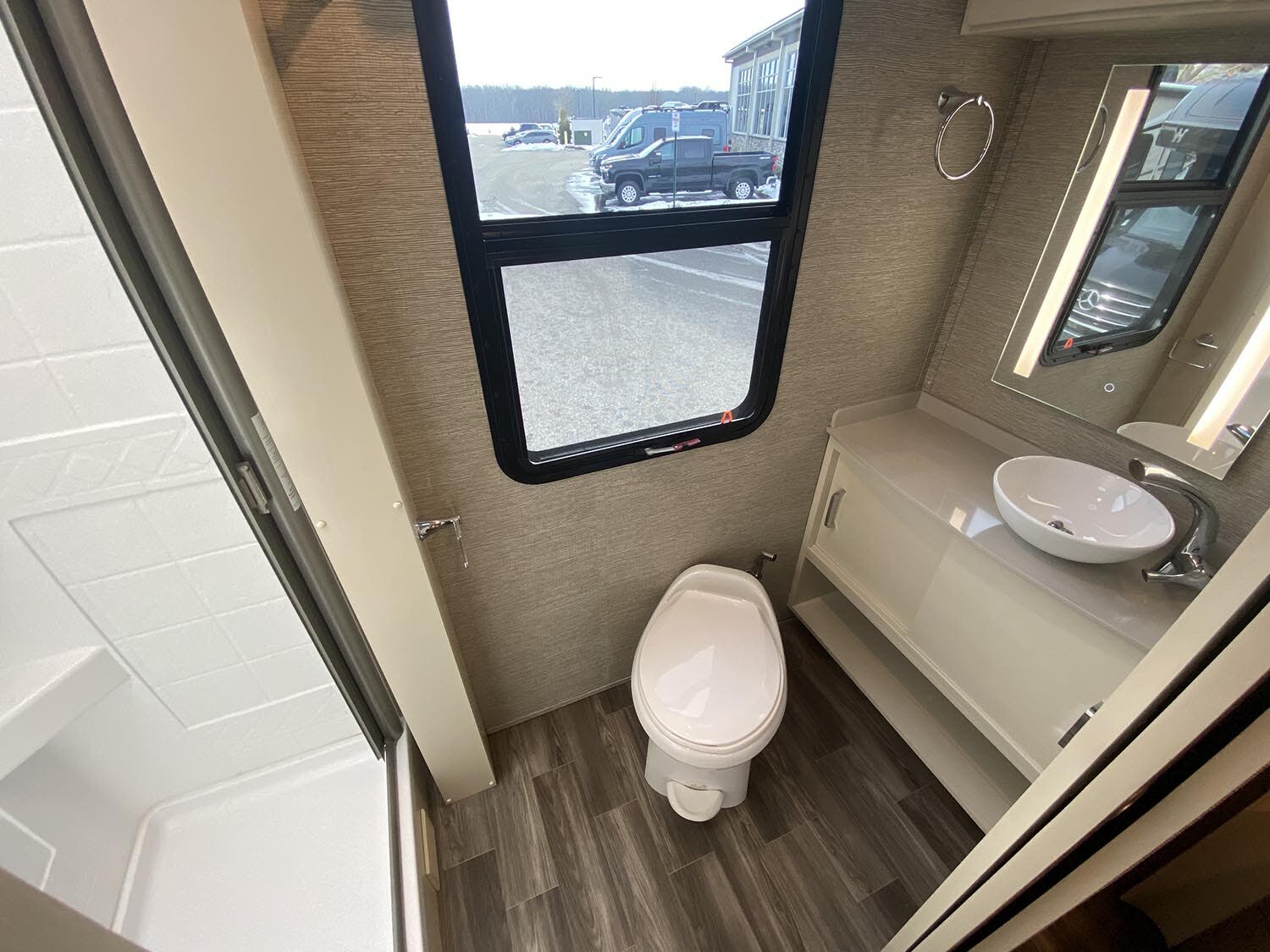

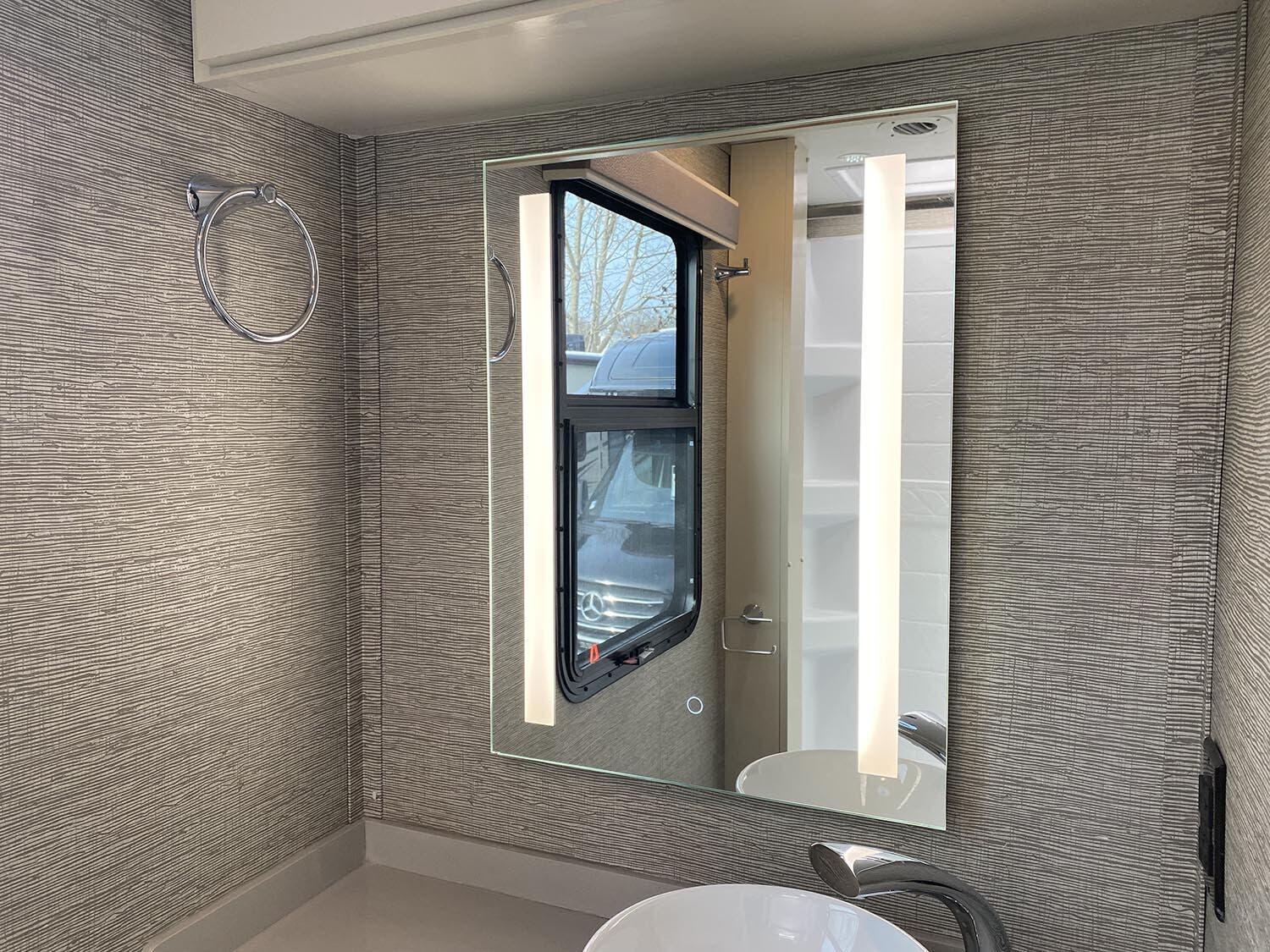

BATHROOM

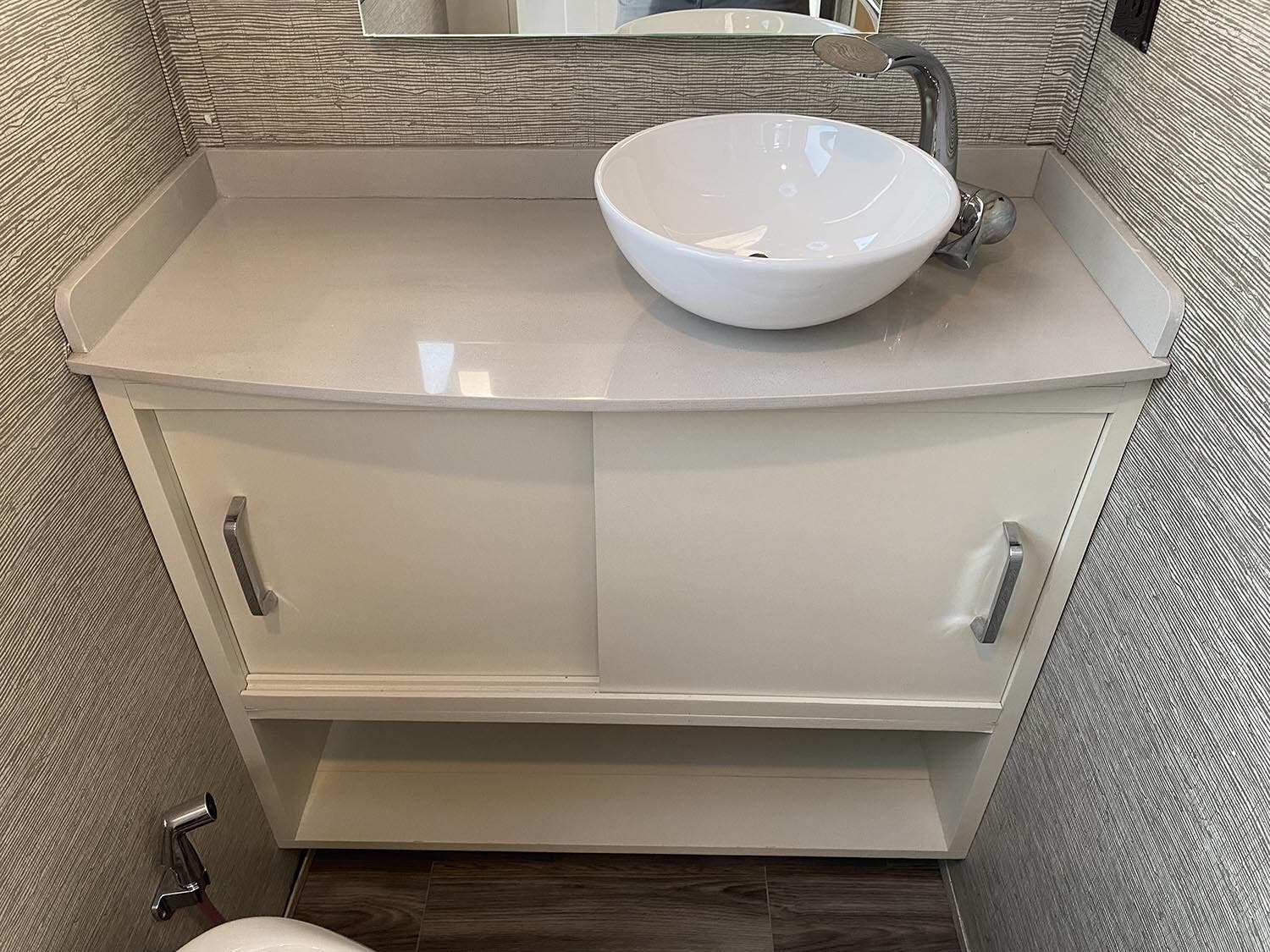

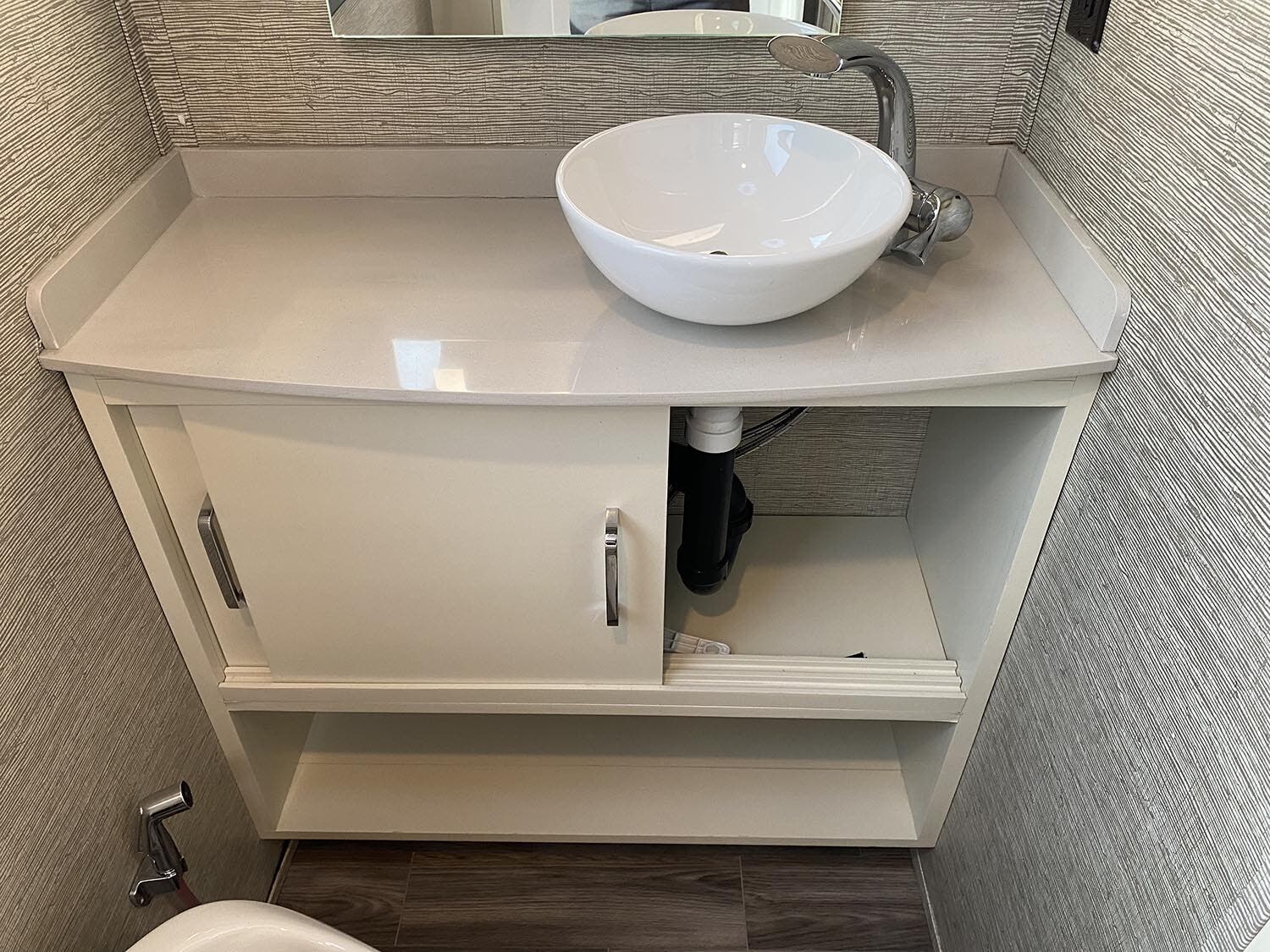

Vanity Storage • Porcelain Vessel Sink with Chrome Faucet • Fantastic Vent Fan
