SPECIFICATIONS

Overall Height: 116″

Overall Width: 80″

Overall Length: 290″

Interior Height: 73″

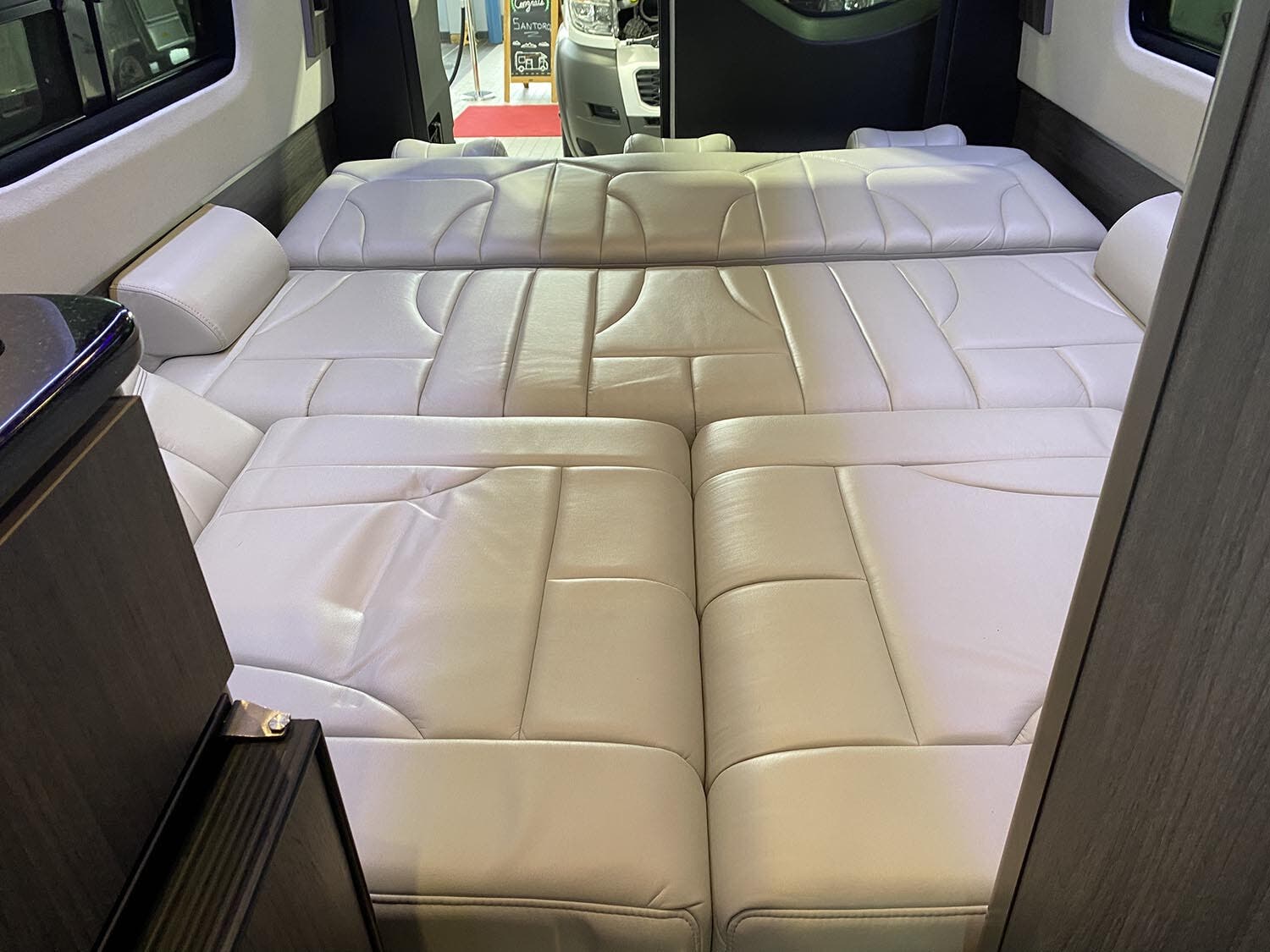

Bed: 66″W X 76″L (excluding head rests)

Fresh Water – 26 Gallon (12V Heated)

Gray Water – 27 Gallon (12V Heated)

Black – 13 Gallon

INTERIOR

Ultraleather Rear Seating Surfaces • Memory Foam Power Sofa Bed 66″W X 76″L (excluding head rests) • (2) Captain Chairs (Lounge Floor Plan Only) • Swiss Chrono Hardwood Cabinets w/ Radius Doors • Soft Touch Walls and Headliner • LED Ambient Accent Lighting • Vinyl Woven Flooring w/ 3/4″ Composite Honeycomb Subfloor • Automotion Power Window Shades • Full Fiberglass Insulation • Front Cab Floor Mat • Safety Kit – First Aid and Fire Extinguisher • Table w/ Mount System

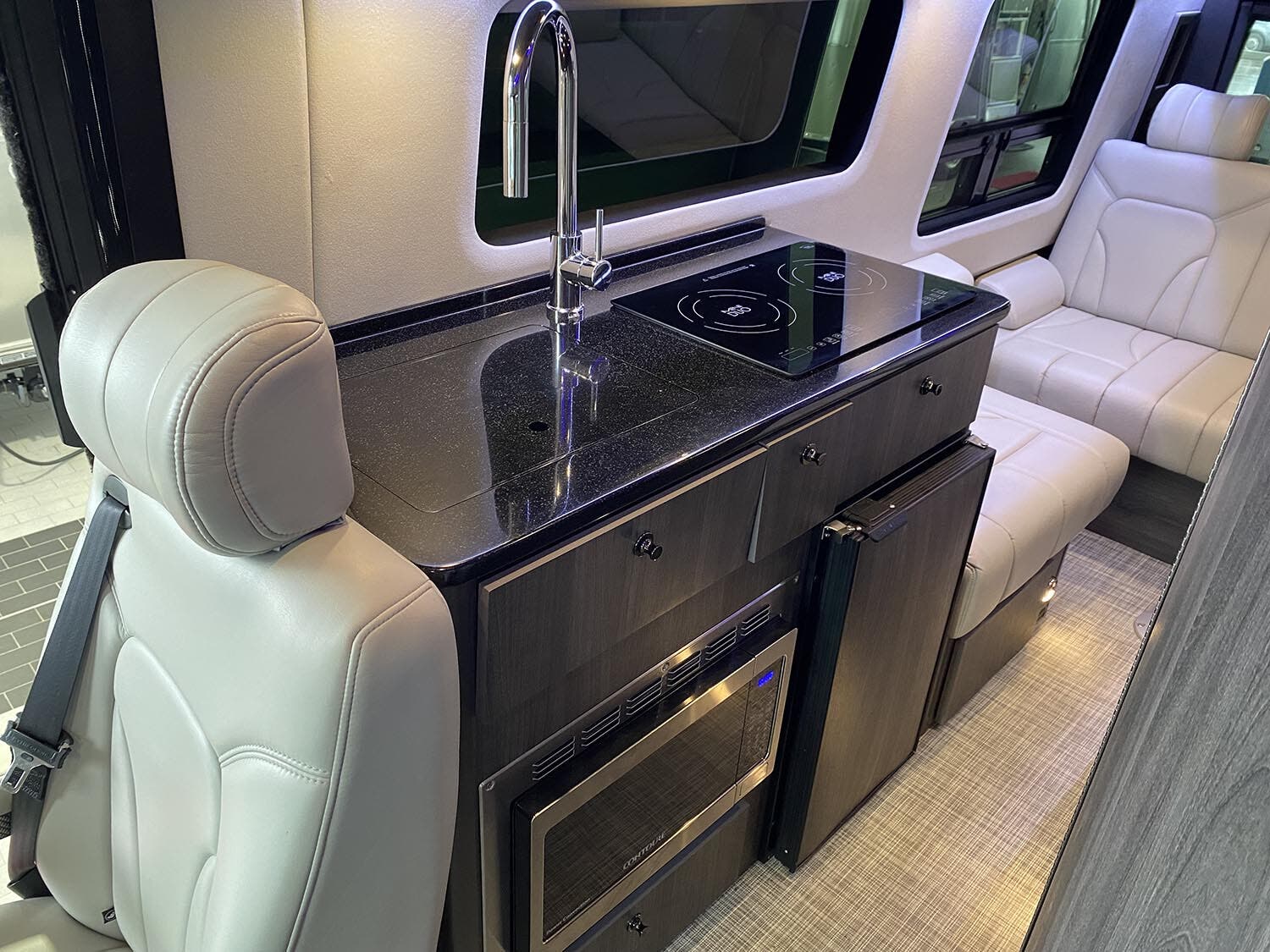

GALLEY

Quartz Countertop w/ Farmhouse Style Sink • Faucet w/ Pull Out Sprayer • Combo Microwave/Convection/Air Fryer • (2) Burner Induction Cooktop • Refrigerator/Freezer Combo

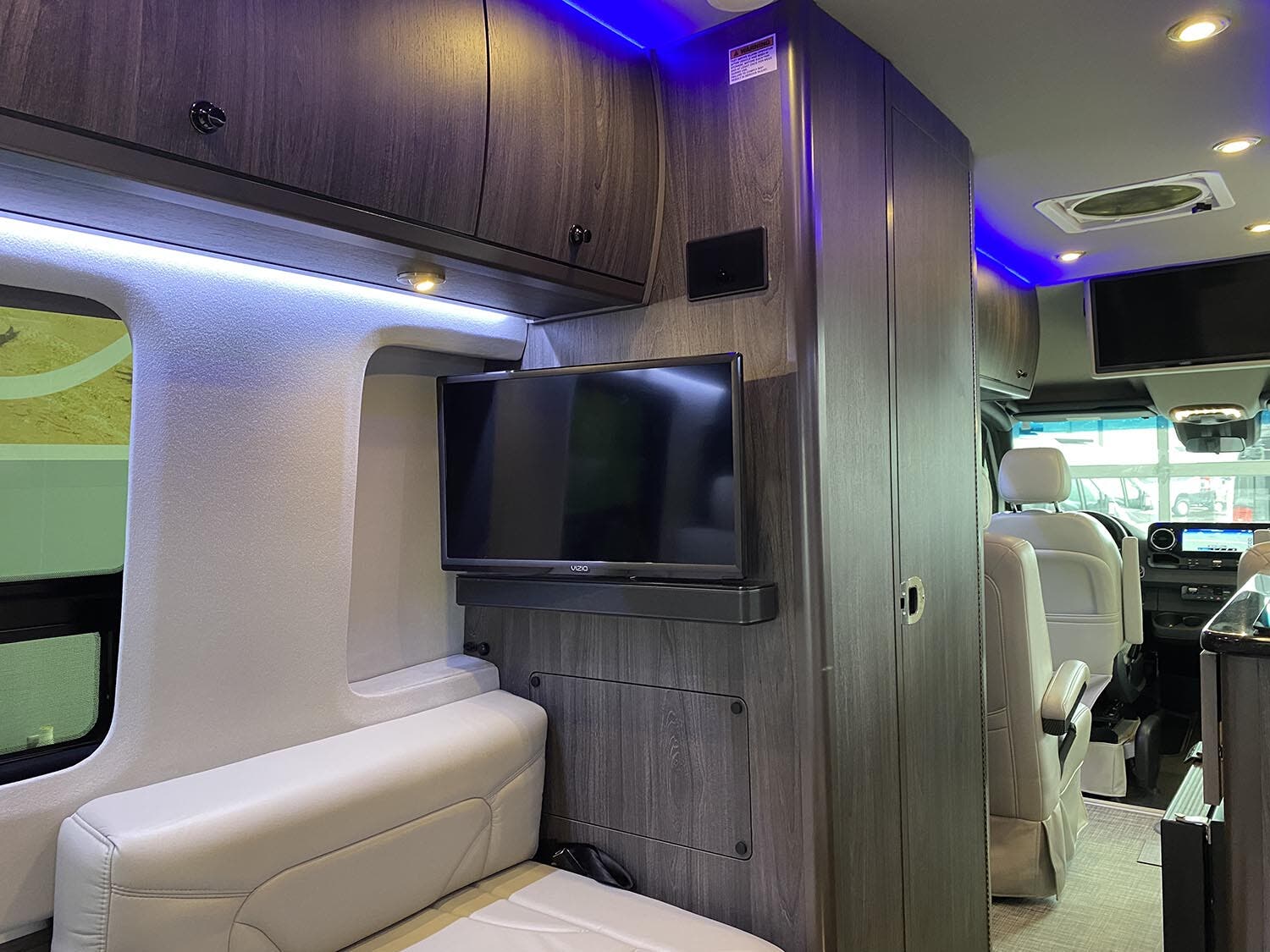

ENTERTAINMENT

24″ LED Smart TV Blu-Ray/DVD Player • Soundbar w/ Premium Sound System • HD Directional Antenna • Cable TV Outlets and Connections • Pre-Wired for Satellite TV • USB and 110V Charging Ports

ELECTRICAL

Multiplex Wiring System • Firefly Integrations Control System w/ Touch Screen Panel • Firefly Mobile Application Controller • Power Management System • Zamp Solar 300 Watt Solar Power • Smoke/Co2 Alarm

BATHROOM

Private Enclosed Wet Bath w/ Window and Privacy Shade • Molded Sink w/ Vanity Mirror • Handheld Showerhead • Ceramic Toilet w/ Foot Flush • Retractablle Clothes Line

HVAC & PLUMBING

Macerator System • Diesel Powered Timberline System: Tankless Hot Water Heater, Furnace and Heating • Fresh Water Pump System • Monitor for Fresh, Black, Gray and Fresh Water Tanks • Dometic Low Profile 13,500 BTU Air Conditioning • Power Lift Vent Fan w/ Rain Sensor

EXTERIOR

RV Window Package • Power Entry Step • Custom Fiberglass Body Kit • Power Awning w/ LED Lighting • Utility Center – Cable, 30 Amp Shore Power, City Water Connection • 110V/120V Power Outlet • Exterior Shower w/ Handheld Wand

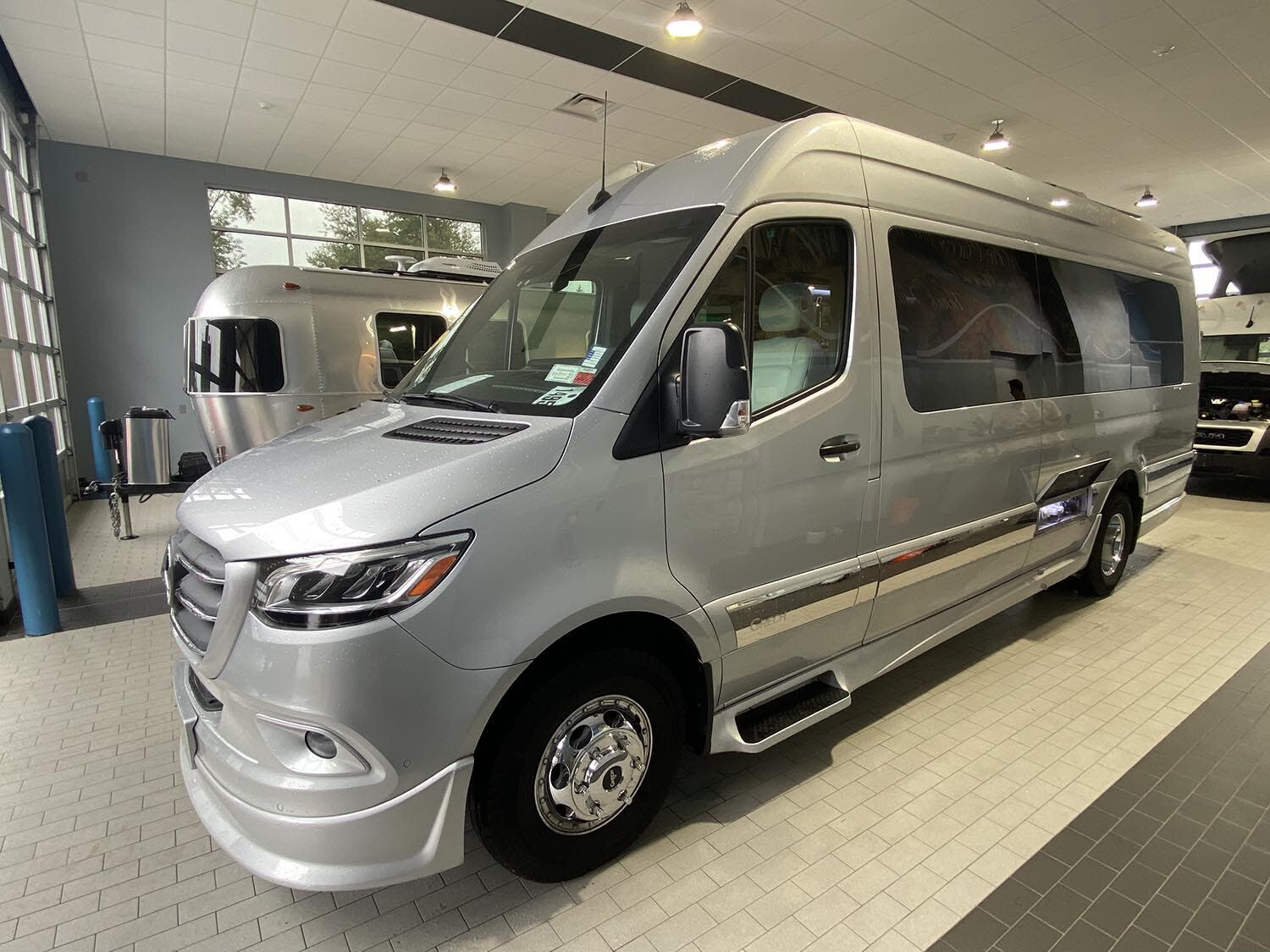

CHASSIS

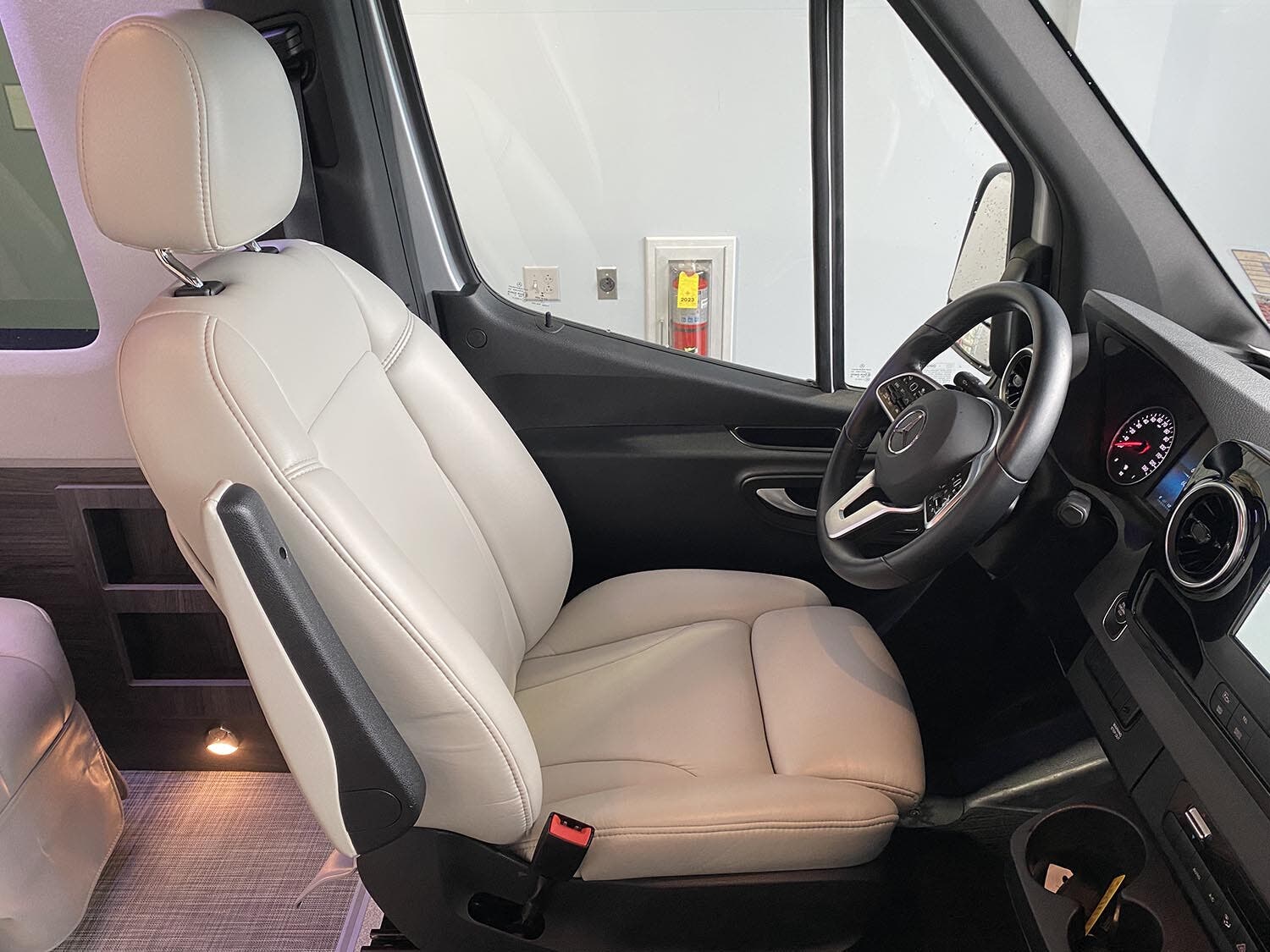

Mercedes-Benz® Sprinter 3500 • Mercedes-Benz® 3.0L V6 Turbo Diesel • 9G-TRONIC – 9-Speed transmission • MBUX Multimedia System with 10.25’’ touchscreen • Mercedes me connect – WiFi (requires subscription) • Smartphone Integration • Sirius XM Satelite Radio • Active Distance Assist DISTRONIC • Multifunction Leather Steering Wheel • Active Lane-Keeping Asset • Active Brake Assist • Blind Spot Assist Mirror • Attention Assist • Wet Wiper System • LED High-Performance Headlamps • Power Driver and Co-drivers seat • Heated Driver and Co-drivers seat • Swivel Driver and Co-drivers seat • Parking Assist • Trailer Tow Package • Electric Sliding Door | Grech RV Chassis Features* Air Suspension • Aluminum Wheels (Polished) • Turn Signal Cameras

LITHIUM PACKAGE

Lithionics Lithium Batteries (12V) • 1,260 Amp Hour / 16,128 Watt Hour • Integrated Battery Management System • Auxilary 280 Amp Alternator w/ Wakespeed Regulator • 3,000 Watt Xantrex Inverter
