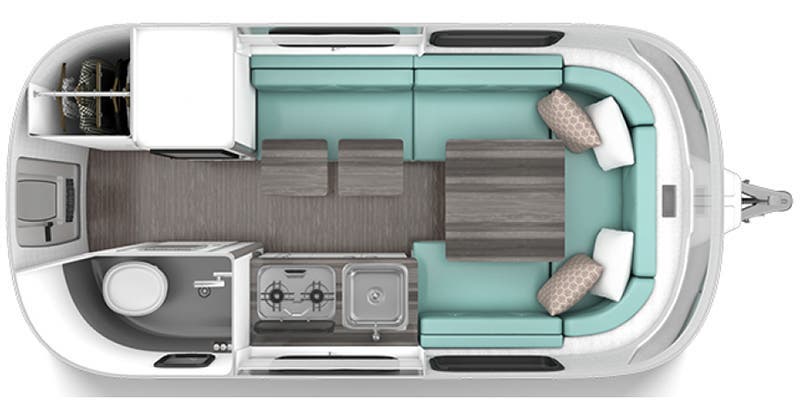

• 16U Front U Shaped Dinette Converts to 80 X 58 Bed Floorplan
• Clutch Interior Decor W/Vanilla Cabinetry
Introducing the newest member of our eclectic family, Nest by Airstream. A new breed of Airstream designed specifically for today’s modern adventure seeker. With its nimble fiberglass shell, Nest is unlike any Airstream you’ve ever seen, yet is squarely rooted in Airstream tradition and Airstream founder Wally Byam’s original vision. Modern, simple, and sophisticated, Nest is loaded with windows. Its advanced design amenities make it the perfect, personal Nest from which to explore the world, without sacrificing the comforts of home.
WEIGHTS & MEASURES
Exterior Length 16’ 7”
Exterior Width 7’ 1”
Interior Width 6’ 10”
Exterior Height 9’ 6”
Interior Height with A/C (Entry Area) 6’ 6”
Hitch Weight (with LP & Batteries) 375 LBS.
Unit Base Weight (with LP & Batteries) 3,000 LBS.
Maximum Trailer Capacity (GVWR) (lbs.) 4,000
Net Carrying Capacity (lbs.) 700 LBS.
Fresh Water Tank (gal.) 24
Black/Grey Combo Water Tank (gal.) 30 (Combo)
30 AMP Service Single AC with Heat Strip (13,500 BTU)
Ducted Furnace (16,000 BTU)
3.2 cu ft DC/AC 2-way electric refrigerator
Interior Windows and Skylights 8
Queen (58″ x 80″) Bed Configuration
Sleeping Capacity Up to 2
Semi-Monocoque Molded Fiberglass Superstructure • Two-Tone Premium Gel Coated Exterior • Automotive Style Laminated Front Window • Tempered Tinted Side and Rear Windows • Skylight with Blackout Shade • LP (1 – 20 lb. Steel Tank) • Molded Front LP Nose Cone • 2 Deep Cycle Group 24 Batteries with Multi-Stage Converter • Exterior LP Gas Low Pressure Grill Connection • Exterior Shower w/ Hot & Cold Water • City Water Inlet w/ Water Pressure Regulator • Hand Painted Chassis • Torsion Axle Suspension • Manual Hitch Jack • 4 Manual Stabilizer Jacks • Goodyear® Endurance 16” Tires, Balanced • Stylized Aluminum Wheels • Nev-R-Lube® Sealed Bearings • Nev-R-Adjust Brakes • Patio Awning with LED Lights • Spare Tire • Solar Pre-wire (1 Front Access Point) • Dedicated Waste Hose Storage • Molded Fiberglass Entry Door w/ Window (Blackout Shade) • LED Entry Door Handle • Unique Front Door Key w/ Heavy Duty Deadbolt • Airstream Custom Aluminum Entry Step • LED Entrance Light • LED Tail Lights • License Plate Bracket with LED Light • Entry Door Bracket for Windy Days • 2 Lockable Storage Compartments • Enclosed Galvanized Heated Underbelly
Insulated, Stain Resistant, Anti Microbial Olefin Walls & Ceiling • Olefin Walls & Ceiling Backed By Azdel Composite • Fan with Multiple Speeds • Probeless Tank Monitoring System • Sliding Screen Door • Blackout Curtains • Handcrafted Italian Lite-Ply® Laminated Interior Cabinetry • Seamless Vinyl Flooring • LED Interior Lighting with Bluetooth Control • Overhead Storage • Prewired for TV (TV installed by dealer) • Continuous Hot Water Heater • Coat & Key Hooks
GALLEY, DINETTE & LOUNGE FEATURES
2 Burner Cooktop (LP Gas) • Microwave • Laminate Galley Top • Stainless Steel Sink • Removable Laminate Table Tops with Aluminum Pedestals • Spradling Dolce Seating Cushions (Stain Resistant) • Convertible Lounge and Sleeping Accommodations (16U only) • Pop Up USB and 110 Outlets
LED Reading Lights • Under Bed Storage • Queen Size Bed • Overhead Storage • USB Ports • Bedspread*
Removable Hand Held Shower Head • Toilet • Roof Vent/Fan • Towel Bar/Hooks • Integrated Soap Dispensers • Enclosed Utility Shelf
LP Low Pressure Gas Grill Connection • Entrance Mat • Fire Extinguisher • LP, Smoke & Carbon Monoxide Detectors • Built In Winterization Kit • TRA Certification Green • 3 Year Airstream Limited Warranty (Transferable) • 3 Year 24/7 Coach-Net Roadside Assistance • A/C Condensation Drain at Ground Level
